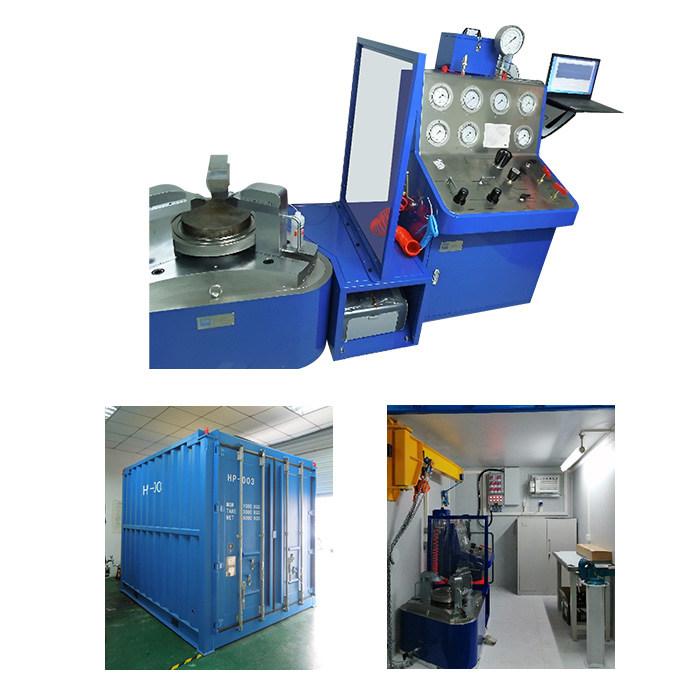

SRV test container work shop TPU-3100-LPC10

Application

1.Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
2.Suitable for offshore oil and gas platform.

Features

1.Use off shore container which is certified by DNV;
2.Meet the requirements of offshore platform explosion-proof and fire prevention;
3.Fully functional, can be customized according to customers' requirements.

Parameters

1.Test medium: air, water;
2.Test pressure: 680 bar;
3.Test range: DN15-400;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight: L3070*W2470*H2580(mm),4640kg;
7.More: With AT-31 portable recoeder, arm crane, bench vice, stainless steel pannel, air conditioner, etc.
