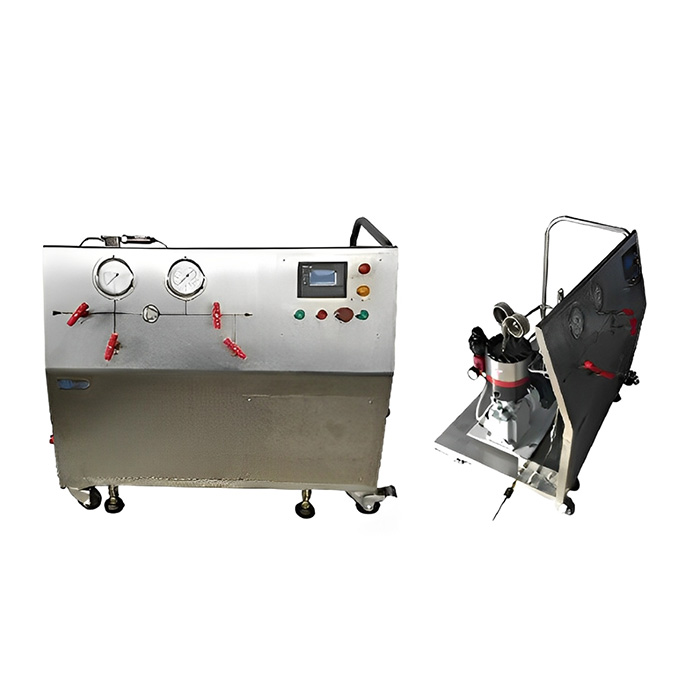

1000 bar portable hydrogen pressurization system TPU-SW005
Application
Suitable for ultrapure hydrogen charging, tank refilling, seat tightness test, gas research.
Features
1.No dynamic seal, no dust or particle, suitable for ultra-pure gas compression;
2.Output pressure up to 700 bar, pressure can be adjusted, automatic shutdown after filling complete;
3.High seat tightness, high quality material to ensure no leakage;
4.Abnormal pressure, motor overload and other abnormal alarm and shutdown protection;
5.Easy to operate and maintain with durable and long service life.
Parameters
1.Test medium: hydrogen;
2.Test pressure: input 20-200 bar, output＜700 bar;
3.Power supply: 2.2kW,220V/50Hz;
4.Dimensions and weight: L936*W512*H600(mm), 130Kg.
